Premium Ticker

A Premium LED Ticker is ideal for displaying messages, stock quotes and sports scores in indoor environments, and it’s bright enough to compete with ambient light. Our Tickers come in several different pixel heights, and all of them are graphical, so you can display both graphics and logos in full 24 bit color (that’s 16.7 million colors!). The Ticker cabinet can be built to any length, and is made from flexible aluminum so we can shape your Ticker to fit almost any curved (concave or convex) surface. A built-in controller ensures that you don’t need a dedicated computer and allows you to control your content from anywhere via the Internet.

LED Type Surface Mount: 3.5mm black front plcc4

Viewing Angle: 120°
Color Full Color (RGB) LED capable of 16.7 million color shades

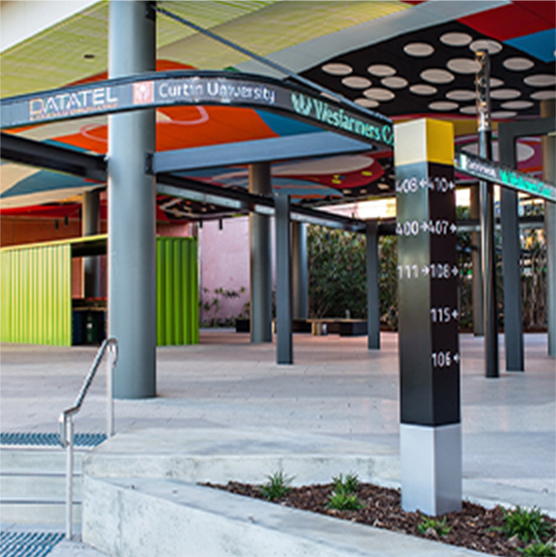

Curve Requirement Flexible designs can conform to a minimum of a 3 foot radius
Enclosure Material Aluminum (Black power paint)
Viewing Distance 30 to 50 feet per inch of character height
Operating Temperature Range 32-140 F (0-60 C)
Power 100-230 VAC 50/60Hz input voltage
Mounting Wall or Ceiling mount options
Approvals / Certifications UL-1950 and UL-60950-1 Compliant

ETL & CE Compliant

ANSI/UL 60950-1, 2nd Edition (2007), "Safety of Information Technology Equipment"

CSA C22.2 NO. 60950-1 2nd Edition (2007), "Safety of Information Technology Equipment"


The following are our standard models and most common size configurations:

Drawing Model Pixels Height Char. Height Cabinet Height Weight Peak Power / Avg Power
Pixel Pitch .2 inch (5.08mm) – 6643 nits Brightness
Get Drawing TKR-M7-7-15 7 1.5 in. (3.81 cm.) 2 in. (5.08 cm.) 1.1 lbs/ft. 24/8 watts/ft.
Lengths begin at 16 in. (40.64 cm.) and can expand in 16 in. (40.64 cm.) increments to any length.
Pixel Pitch .3 inch (7.62mm) – 3,200 nits Brightness
Get Drawing TKR-M10-16-48 16 4.8 in. (12.19 cm.) 5.8 in. (14.73 cm.) 3.5 lbs/ft. 19 / 10 watts/ft.
Get Drawing TKR-M10-24-72 24 7.2 in. (18.29 cm.) 8.2 in. (20.83 cm.) 4.2 lbs/ft. 29 / 14 watts/ft.
Get Drawing TKR-M10-32-96 32 9.6 in. (24.38 cm.) 10.6 in. (26.92 cm.) 5 lbs/ft. 38 / 19 watts/ft.
Lengths begin at 60 in. (151.4 cm.) and can expand in 3 in. (7.62 cm.) increments to any length.
Pixel Pitch .5 inch (12.7mm) – 3,565 nits Brightness
Get Drawing TKR-M4-24-12 24 12 in. (30.48 cm.) 12.25 in. (31.12 cm.) 5.5 lbs/ft. 43 / 22 watts/ft.
Get Drawing TKR-M4-32-16 32 16 in. (40.64 cm.) 16.25 in. (41.28 cm.) 6.5 lbs/ft. 58 / 29 watts/ft.
Get Drawing TKR-M4-48-24 48 24 in. (60.96 cm.) 24.25 in. (61.60 cm.) 7.5 lbs/ft. 86 / 43 watts/ft.
Lengths begin at 120 in. (304.8 cm.)

We can also make any of the above models / sizes available for full outdoor use by increasing the LED intensity to 7,000 nits, using IP67 rated power supplies, and coating the LED boards to an IP65 rating

What Does IP65 Mean?

IP stands for 'Ingress Protection'

An IP number is used to specify the environmental protection of enclosures around electronic equipment. These ratings are determined by specific tests.

The IP number is composed of two numbers, the first referring to the protection against solid objects and the second against liquids. The higher the number, the better the protection.

First Number

0 - No protection (Sometimes X)
1 - Protected against solid objects up to 50mm³
2 - Protected against solid objects up to 12mm³
3 - Protected against solid objects up to 2.5mm³
4 - Protected against solid objects up to 1mm³
5 - Protected against dust, limited ingress (no harmful deposit)
6 - Totally protected against dust

Second Number

0 - No protection (Sometimes X)
1 - Protection against vertically falling drops of water (e.g. condensation)
2 - Protection against direct sprays of water up to 15 degrees from vertical
3 - Protection against direct sprays of water up to 60 degrees from vertical
4 - Protection against water sprayed from all directions - limited ingress permitted
5 - Protected against low pressure jets of water from all directions - limited ingress permitted
6 - Protected against low pressure jets of water, limited ingress permitted (e.g. ship deck)
7 - Protected against the effect of immersion between 15cm and 1m
8 Protected against long periods of immersion under pressure

Ticker Platform

How do I control the Ticker and change its content?

The Rise Ticker has a built in controller that uses our LED Ticker Platform, the Platform allows you to log in from any computer, tablet, or smartphone to manage your Ticker and configure your content. It’s incredibly easy and it’s all done from a web browser. And better yet, you don’t have to have an expensive dedicated computer just for controlling the Ticker.

Control Features

  • Easy configuration of content items
  • Set schedules to determine when your content items play
  • Set how fast your Ticker scrolls and adjust its brightness
  • Set a power schedule to turn your Ticker on and off
  • Add and manage additional users
  • Restart your Ticker remotely

There is no annual fee for using our Ticker Platform to show your messages and images combined with Twitter and RSS feeds. We also offer an optional subscription of $20 per month to display licensed content sources for Financial, Sports and News. (see below for more detail)

Rise Ticker

Watch Demo


What kind of content can I show on the Ticker?

We have several content items that you can configure and play on our LED Ticker for FREE (no annual cost) as part of our Ticker Platform:

Display Twitter


Tweets from any Twitter account, hashtag or search term.

Display RSS feeds


Display your own news feed by incorporating any RSS feed from the web that you have permission to display.

Display images


Add your logo and other images to create more visual impact and reinforce your messages. View ticker image library.


Display your own messages to promote specific products, welcome visitors, or display event information and updates.

We also offer licensed content that you can subscribe to on an annual basis ($20 per month) to show the following content sources:

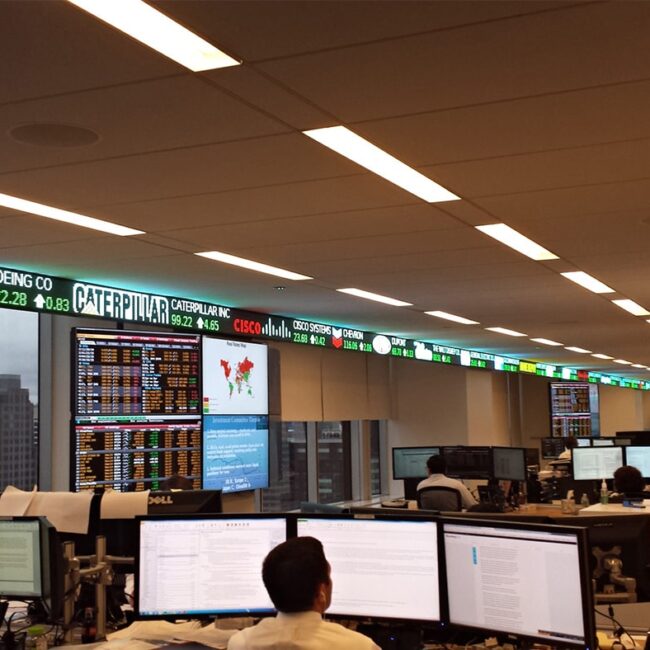

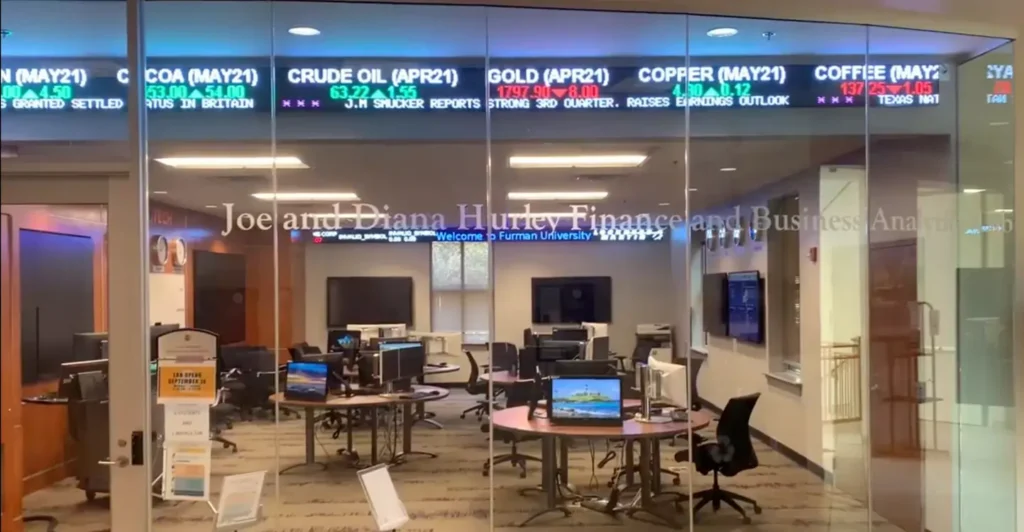

Display stock quotes


20-minute-delayed equity quotes from TSX, NYSE, and Nasdaq markets.


The latest topnews, entertainment, and sports stories from Thomson Reuters.

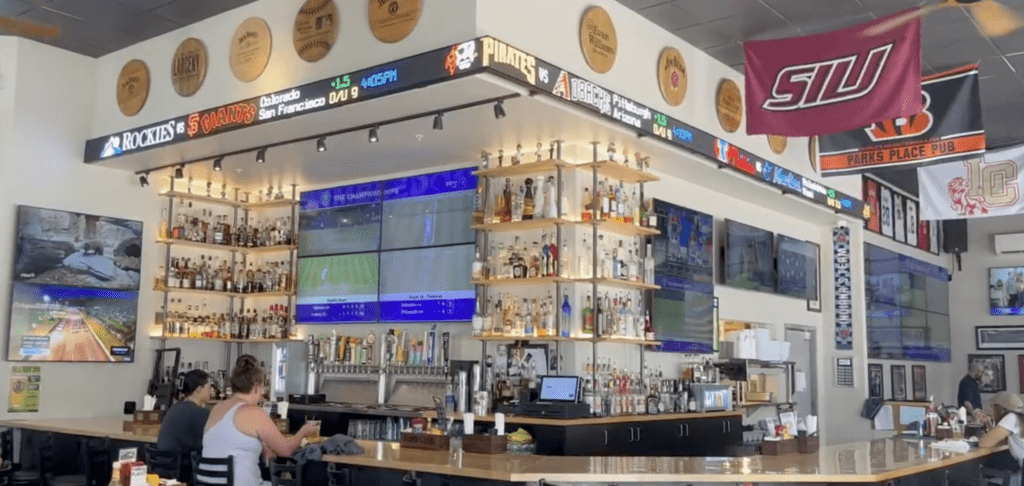

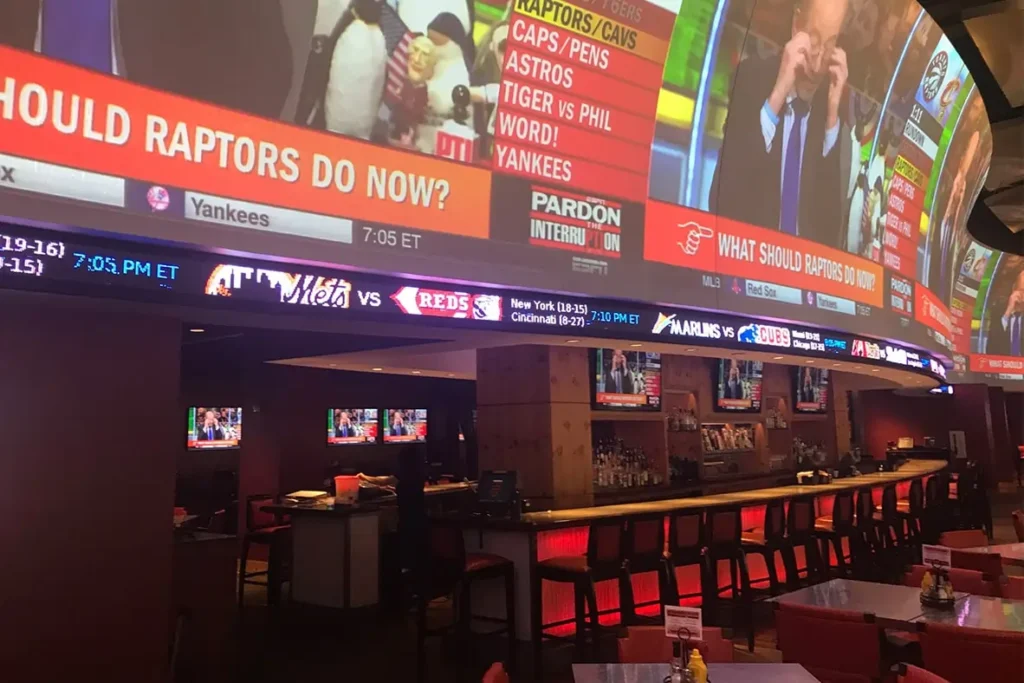

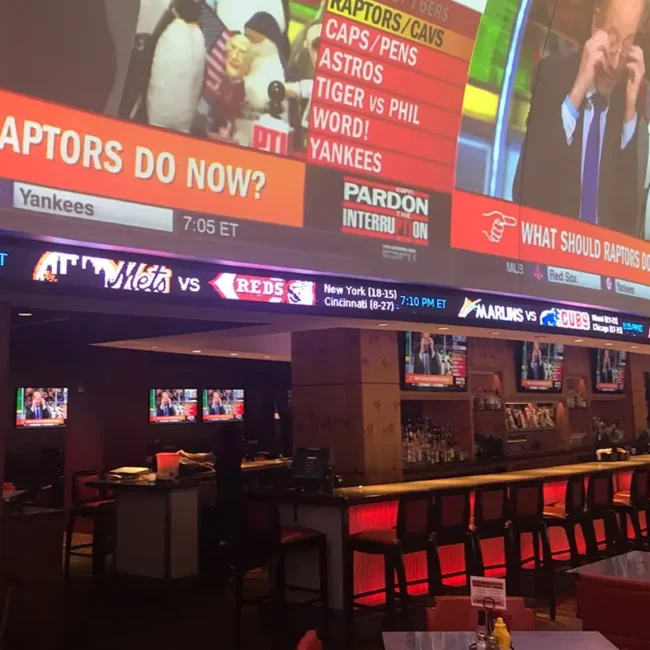

Display sports scores


Scores, schedules, odds, and game progress for the MLB, NFL, NHL, NBA, NCAA Football, and NCAA Basketball.

custom ticker data

Your Data

Display your own internal data from a database or Excel file.

Premise-Based Ticker Software


Our LED Tickers are compatible with the C-Scape JetStream Ticker software, which provides you with advanced message editing and message scheduling capabilities, and integration with real time market data interfaces.

Learn More


Additional Ticker Services

Ticker support

Priority Support

Want to talk to an actual person when you need help with your Ticker? We have an experienced team of technicians that you can reach by phone or email for assistance. This is not a call center – far from it! Become a Priority Support member and get extended warranties on any equipment that you purchase from us.

Ticker software training


Sign up for a personalized webinar that will educate you on how all the pieces of your display fit together. It will cover all the basics of your specific account and content. And the best part about it is that you can ask questions along the way, so you get the most out of your investment.

Ticker installation services


Big, small, straight, angled, or curved: no matter what type of Ticker you need, we have the resources and experience to install it. Depending on the project size and complexity, we also offer a pre-install site survey to ensure that all dimensions and angles are precise and to review all preparations for the final installation.
