LED Ticker & Digital Signage Hardware (4mm & 6mm Pixel Pitch)

Straight Cabinet Specifications

• Cabinet Width: Start at 48 inches and expand in 7.5 inch increments to any size
• Cabinet Depth: 1.9 inches
• Mounting Depth: Adjustable 4 to 7.5 inches
• Option to configure for a “Twin” ticker with 2 data streams.
• Color Depth: RGB (Full Color) 65,000 color shades
• Network: Hardwire RJ-45 or Wifi
• 5 year on-site warranty
• ETL Safety Certifications:
  • Audio/Video, Information and Communication Technology Equipment – Part 1: Safety Requirements [UL 62368-1:2019 Ed.3]
  • Audio/Video, Information and Communication Technology Equipment – Part 1: Safety Requirements [CSA C22.2#62368-1:2019 Ed.3]

For technical information on power, weight, and mounting please review the appropriate drawing:

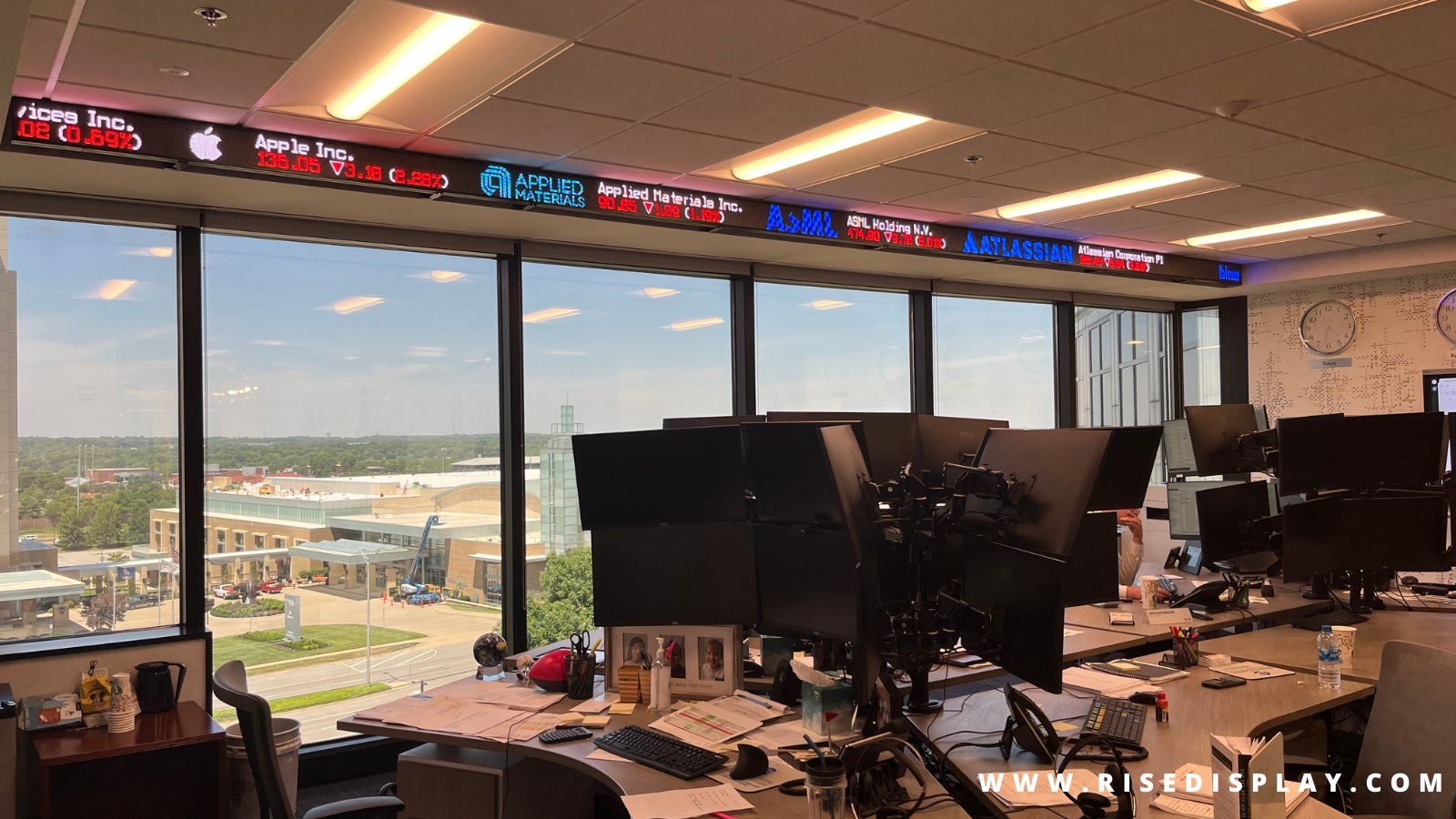

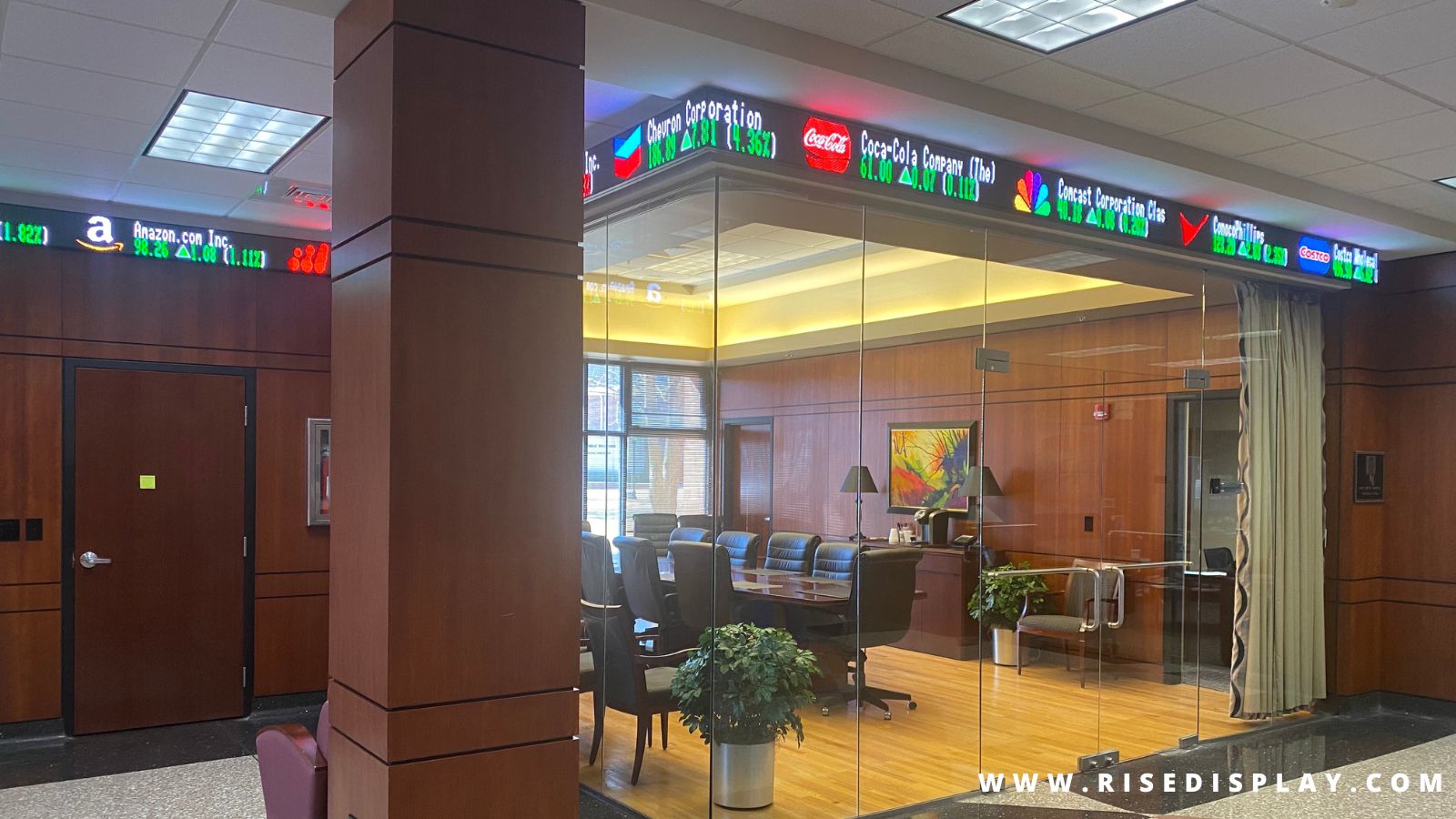

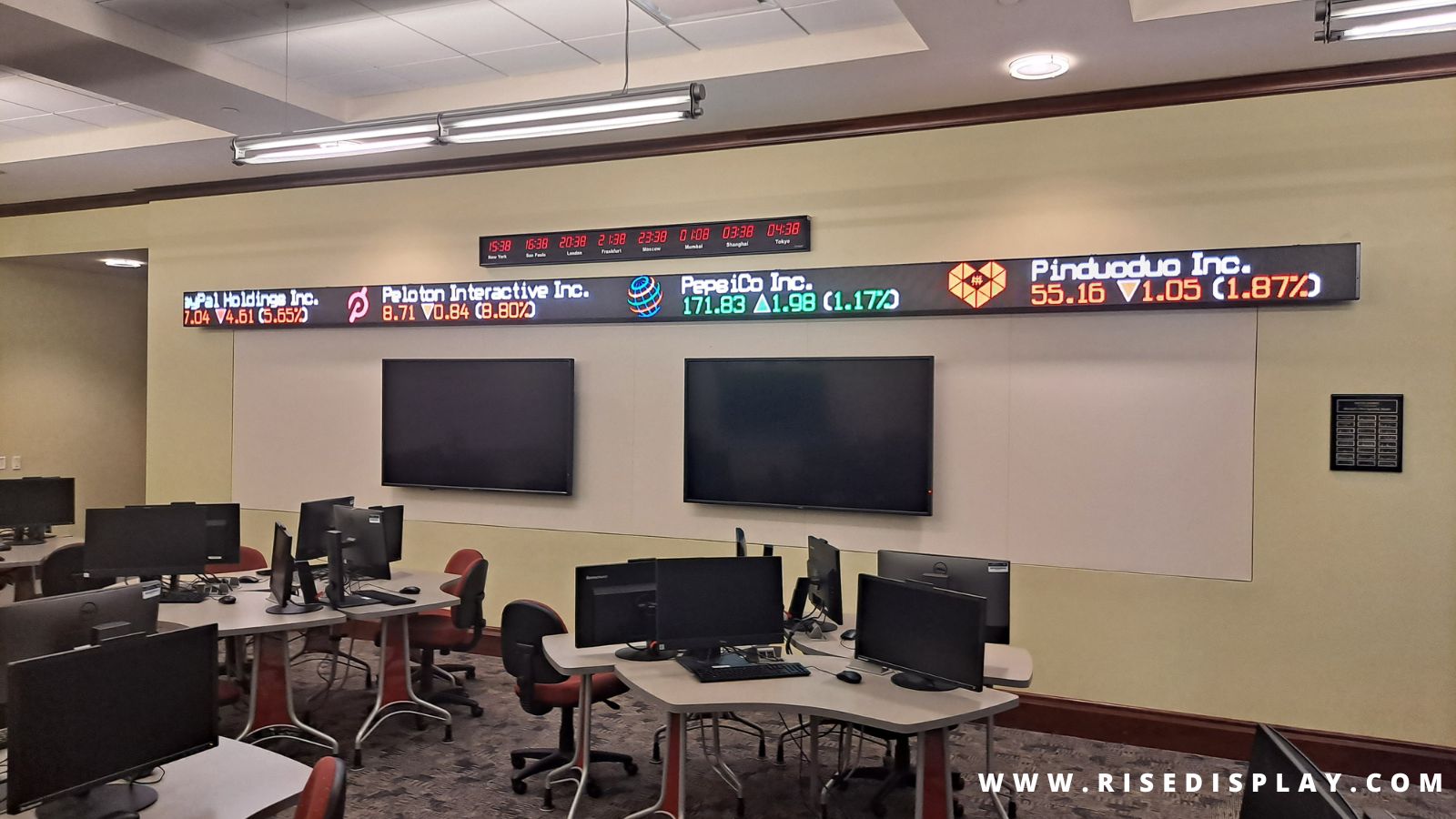

	32 Pixel	48 Pixel	64 Pixel
.16 inch (4mm) Pixel Pitch	Height: 5.8″ Drawing	Height: 8.3″ Drawing	Height: 10.9″ Drawing
.23 inch (6mm) Pixel Pitch	Height: 8.4″ Drawing	Height: 12.1″ Drawing	Height: 16.3″ Drawing

Additional Resources For Our Digital Signage Hardware

• Rise Ticker Install Guide
• Ceiling Mount Detail
• Specifications Template for Writing a RFP (MS Word)
• Ticker Overview Presentation (Powerpoint)
• Stock Ticker Brochure (PDF)
• Sports Ticker Brochure (PDF)

Low Resolution Ticker and Digital Signage Hardware Specifications

• Cabinet Height: 4.6 inches
• Standard Cabinet Widths: 48, 63, 78, 85, 93, 122, 153, and 176 inches
• Cabinet Depth: 1.9 inches
• Mounting Depth: Adjustable 4 to 7.5 inches
• Pixel Pitch: .23 inches (6mm)
• Color Depth: RGB (Full Color) 65,000 color shades
• Network: Hardwire RJ-45 or Wifi
• 2 year limited warranty
• 16 Pixel Ticker Drawing
• Rise Ticker Install Guide
